SG-CR
Cable rod mesh for structured architectural surfaces.
A stronger linear mesh language for exterior surfaces and large architectural screens that need rhythm, stability and material clarity.
Project role
Cable rod mesh for large surfaces with clear structural rhythm.
SGORIA cable rod wire mesh supports facade skins, sunshading, parking screens and safety enclosures where openness, panel rhythm and fixing logic need to be decided together.
Cable rod model library
Compare 16 cable rod wire mesh models by open area and linear rhythm.
This SG-CR catalogue library follows the product catalogue sequence, with each model shown by image and open area for commercial facades, public building screens, parking garage elevations and sunshading sample shortlisting.
Open area

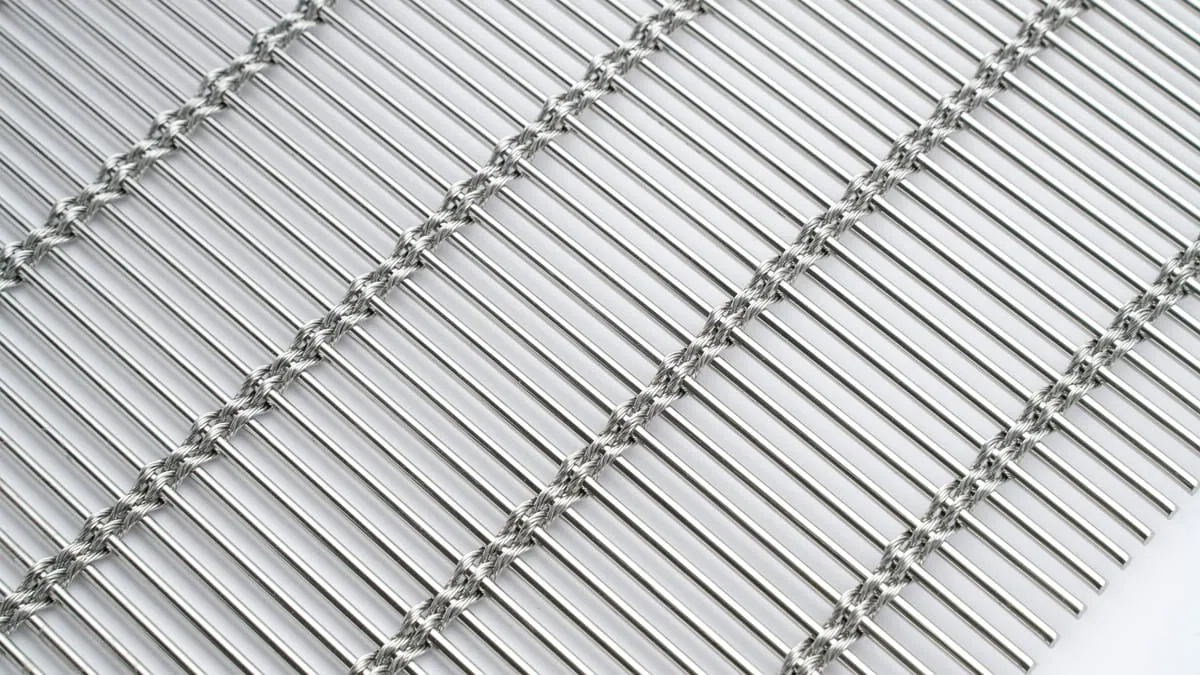

Request samples SG-CR-001
- Open area
- 65.3%

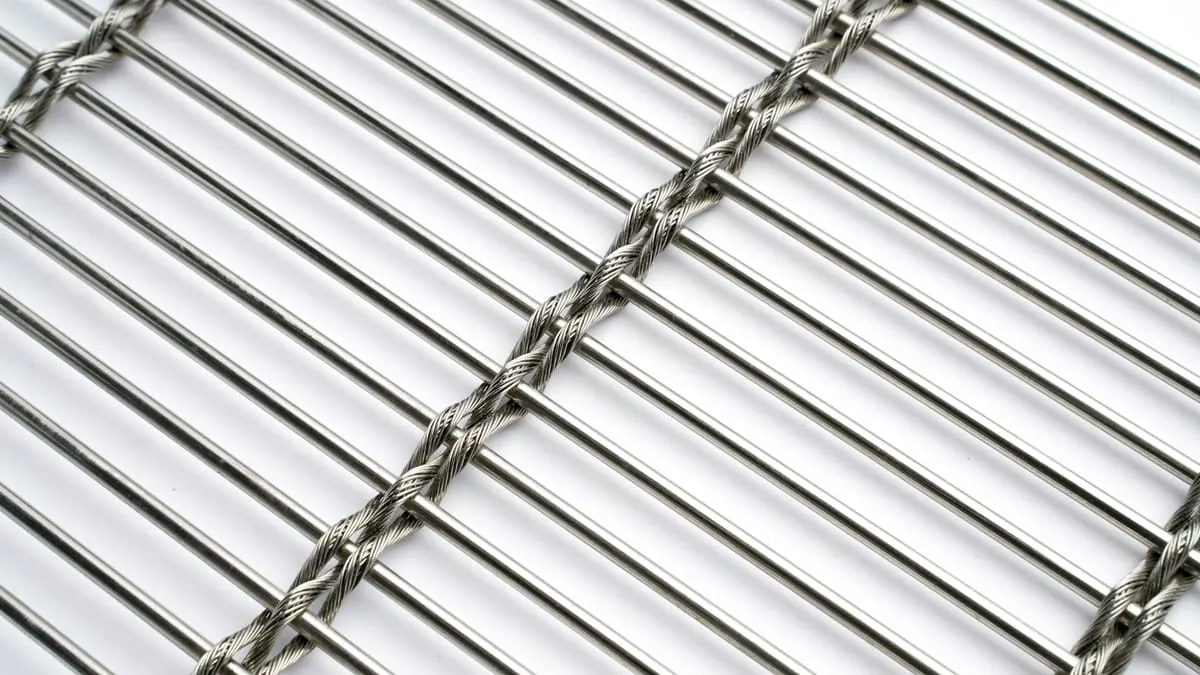

SG-CR-002
- Open area
- 65.3%

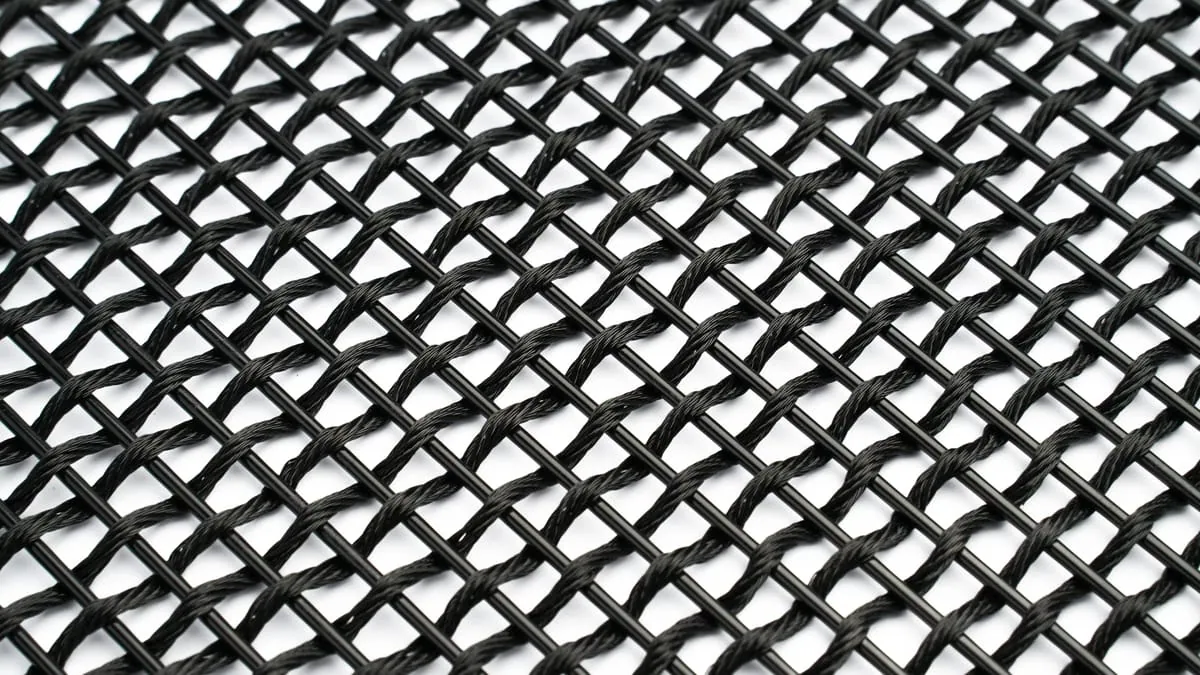

SG-CR-003
- Open area
- 43.8%

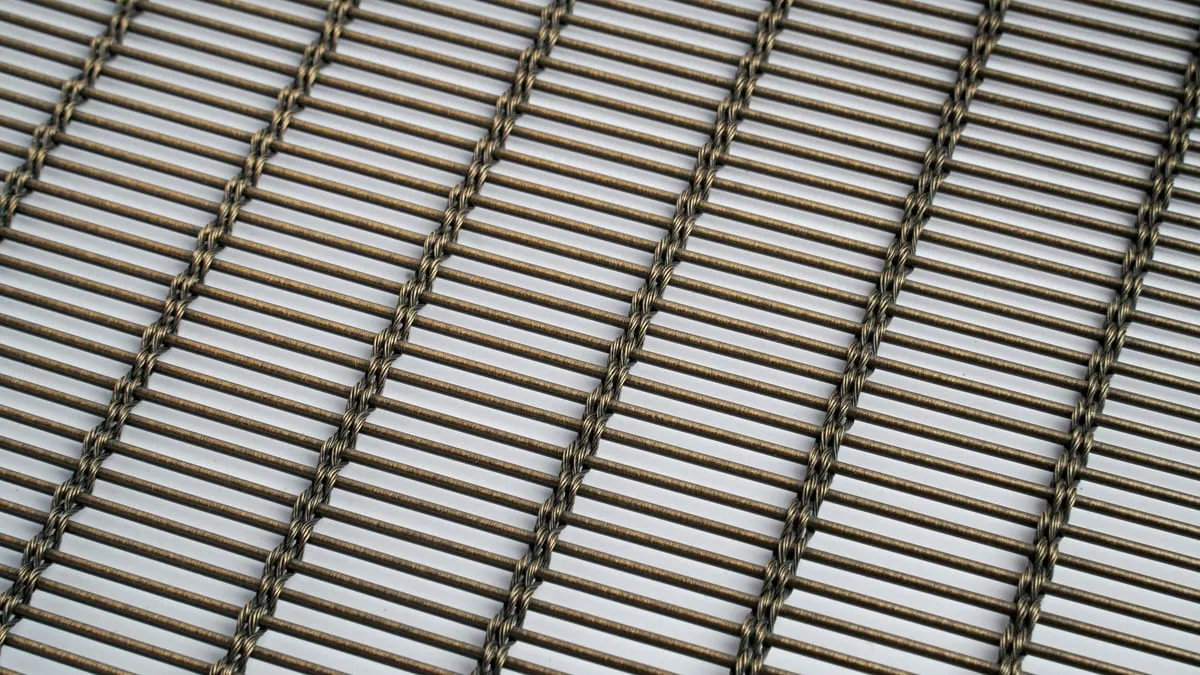

SG-CR-004
- Open area
- 41.5%

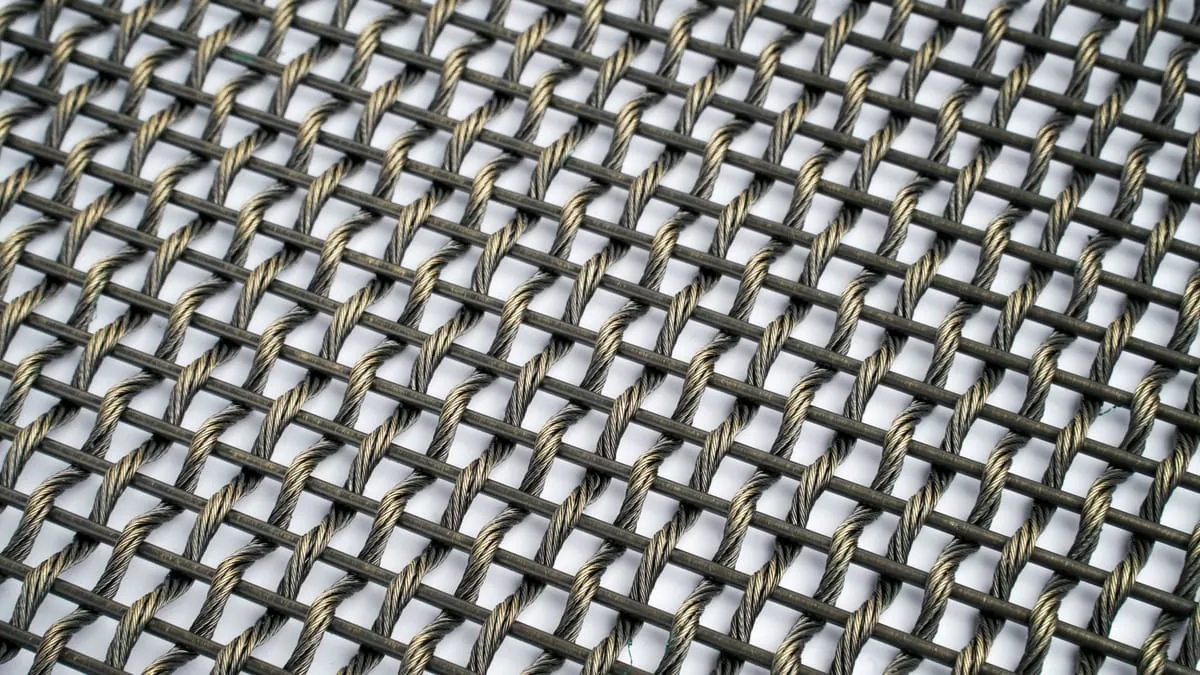

SG-CR-005
- Open area
- 43.8%

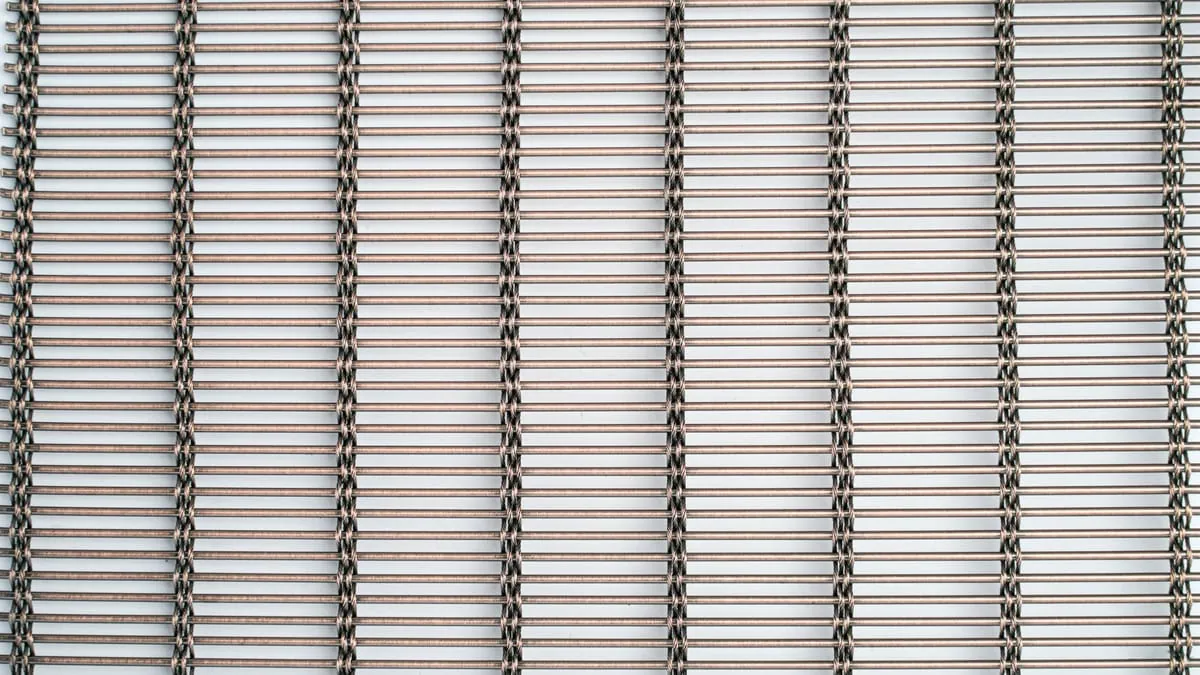

SG-CR-006
- Open area
- 41.5%

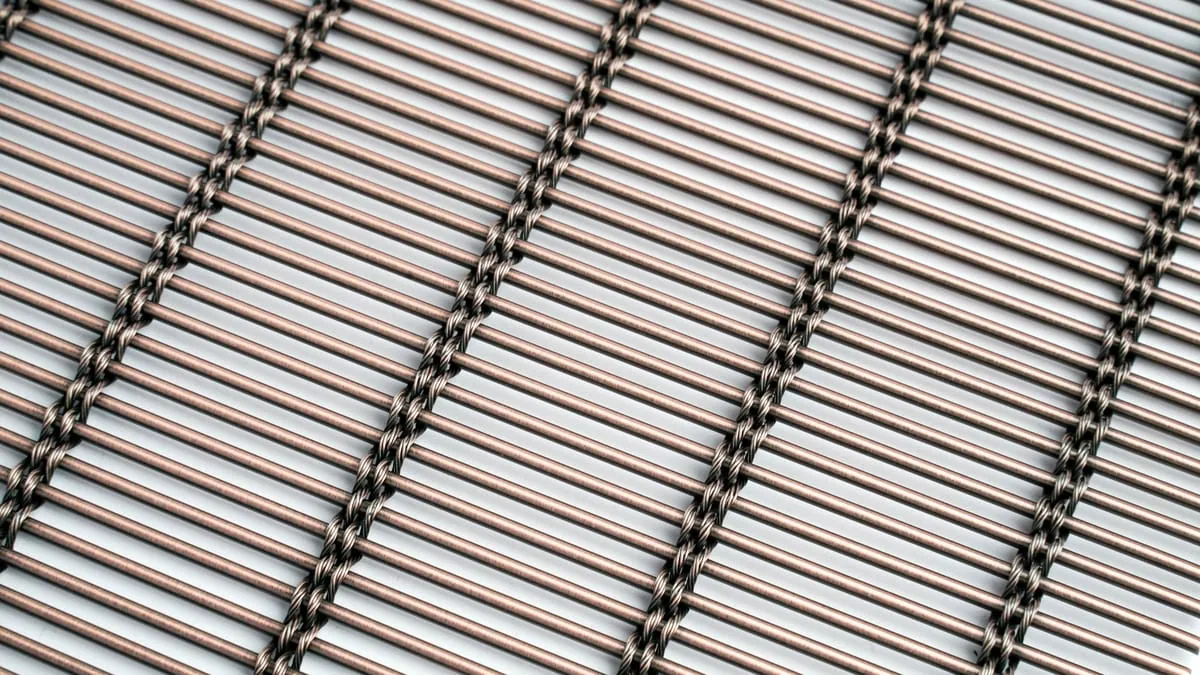

SG-CR-007
- Open area
- 41.5%

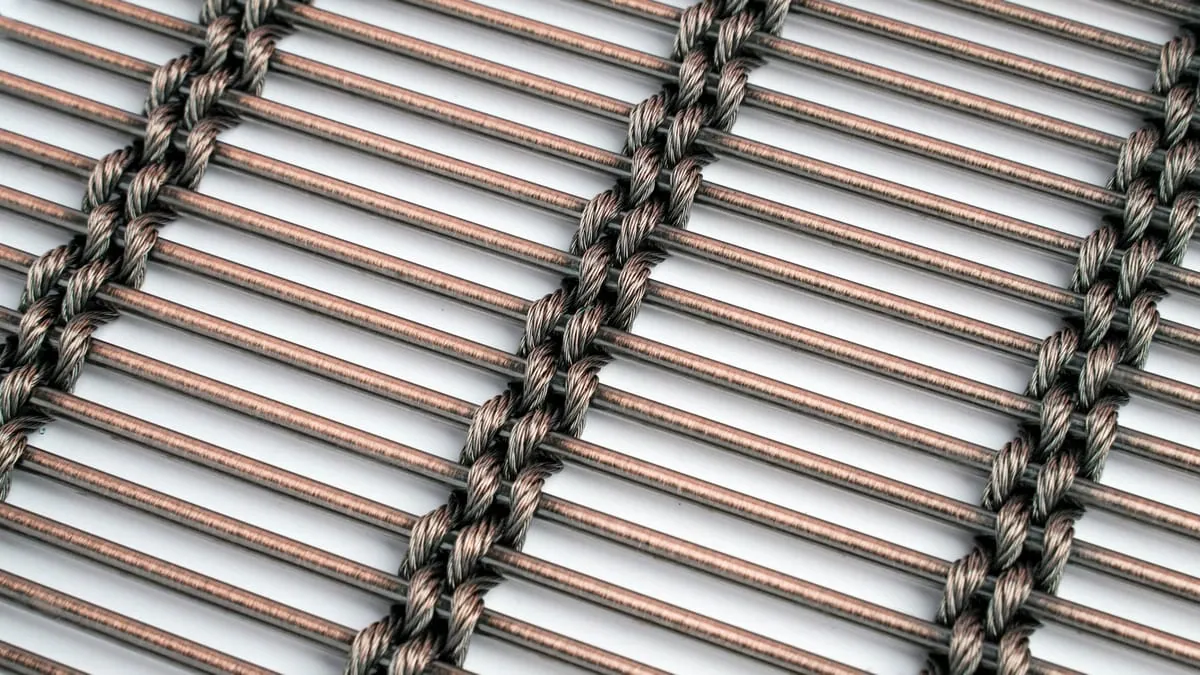

SG-CR-008
- Open area
- 47.1%

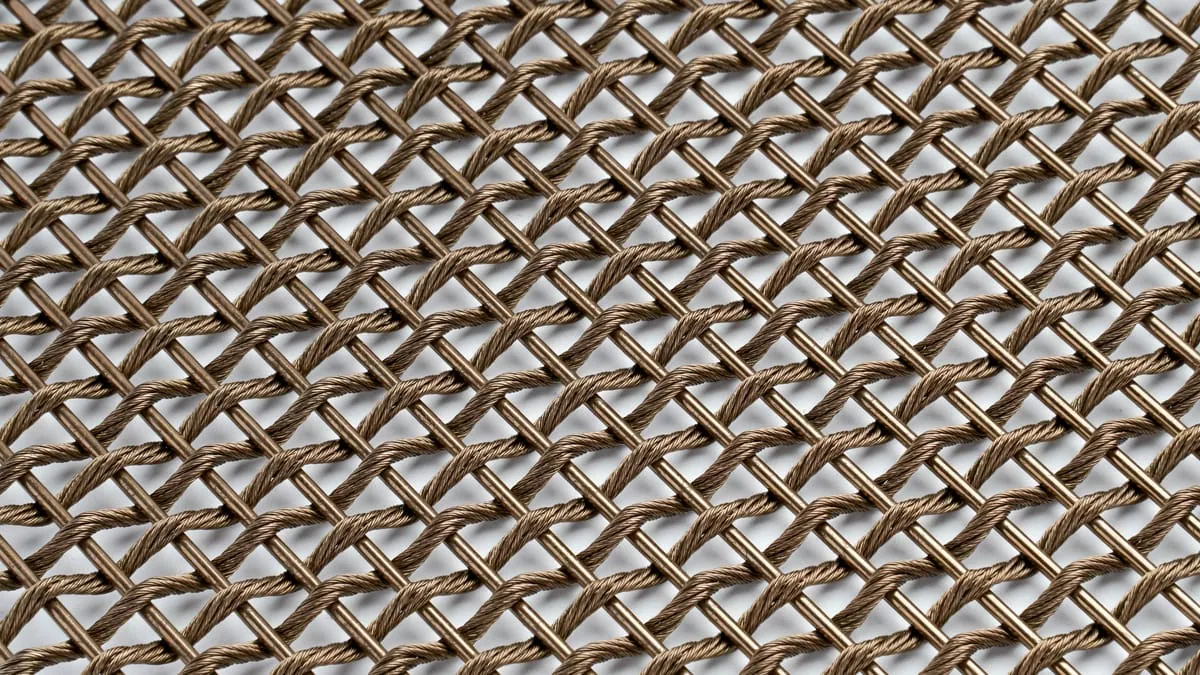

SG-CR-009
- Open area
- 43.5%

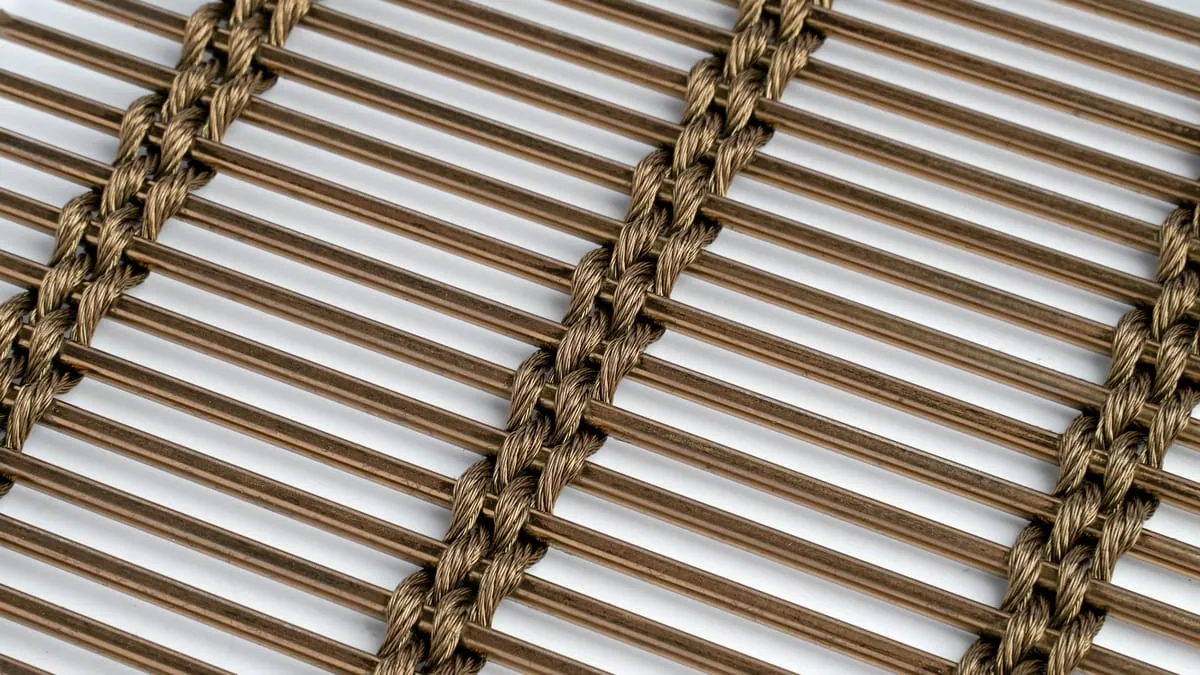

SG-CR-010
- Open area
- 47.1%

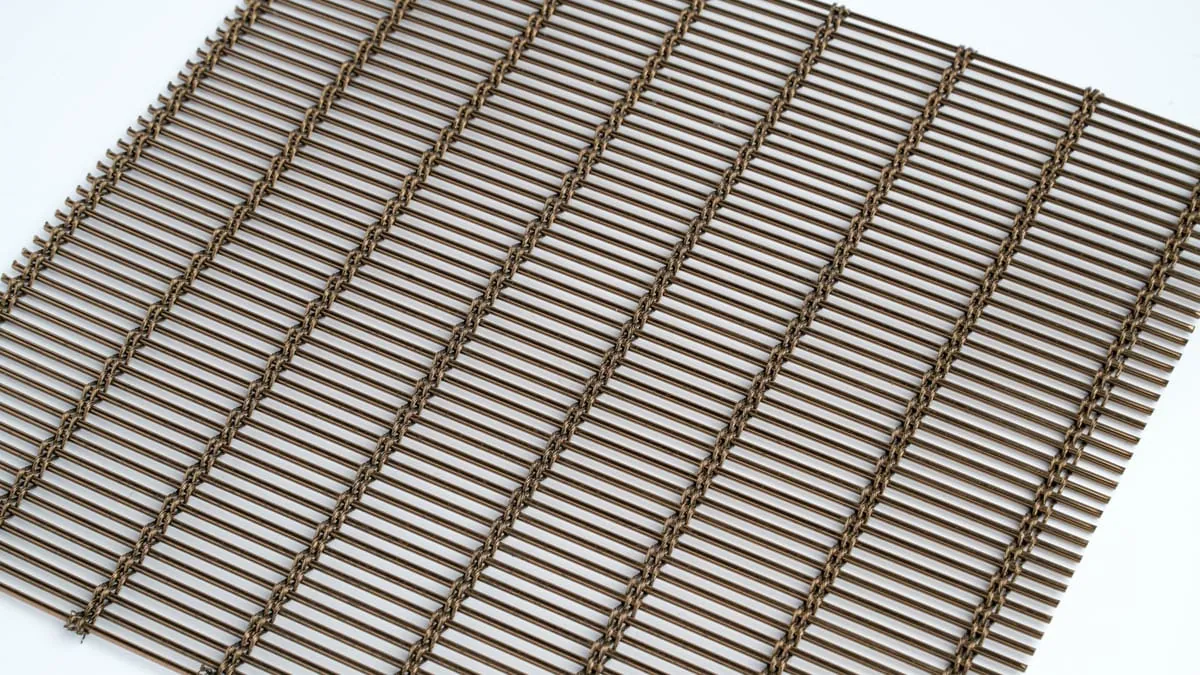

SG-CR-011
- Open area
- 41.5%

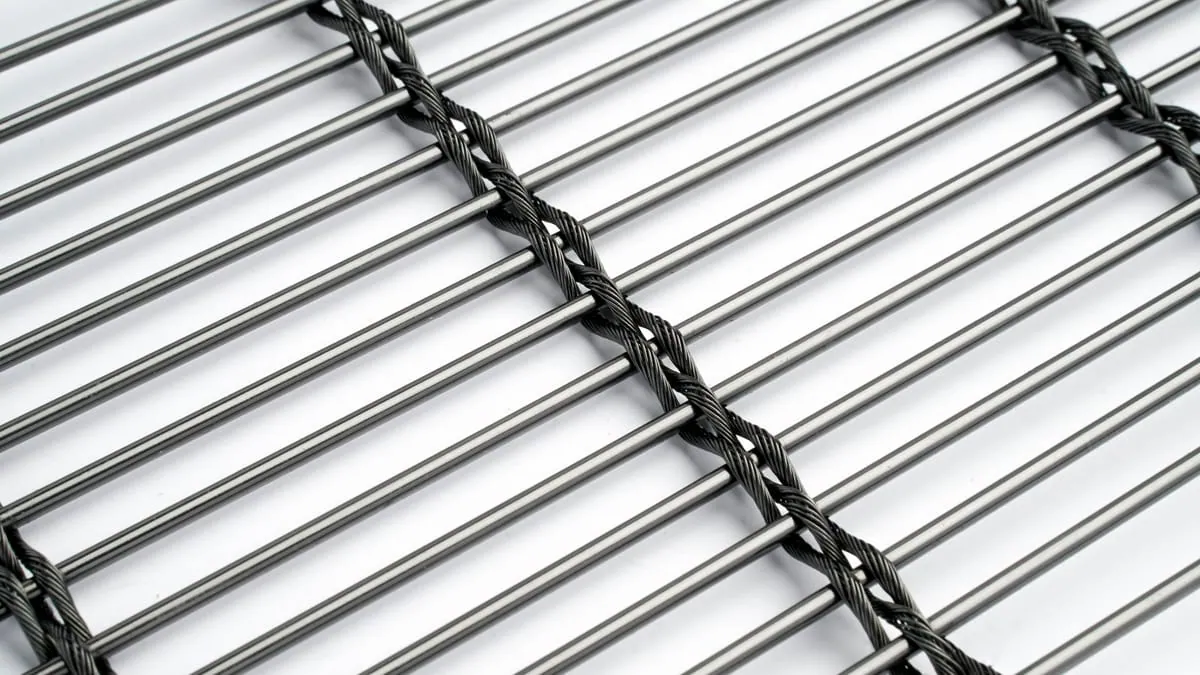

SG-CR-012
- Open area
- 64.8%

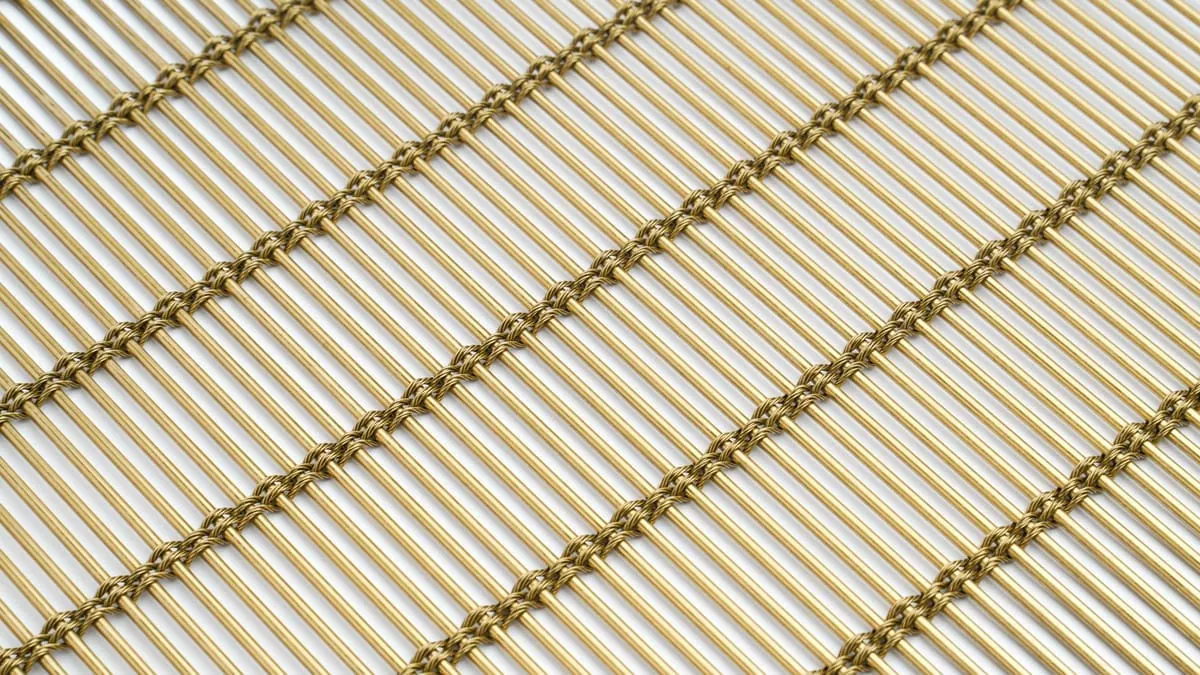

SG-CR-013
- Open area
- 41.5%

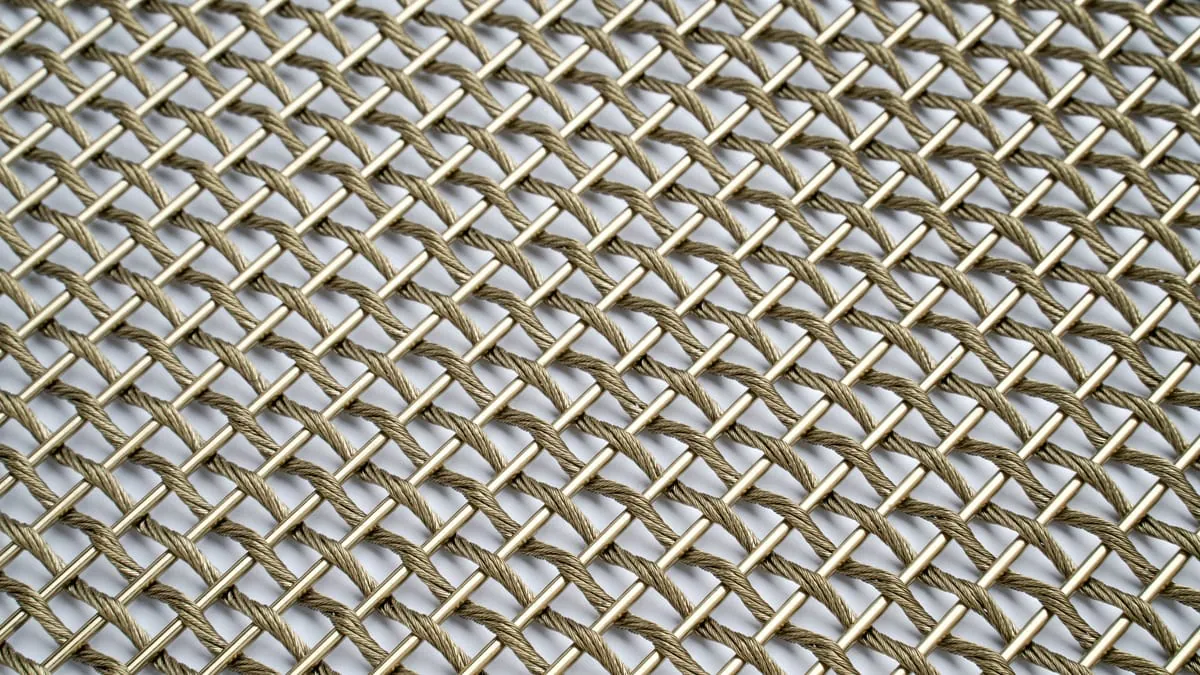

SG-CR-014
- Open area
- 43.5%

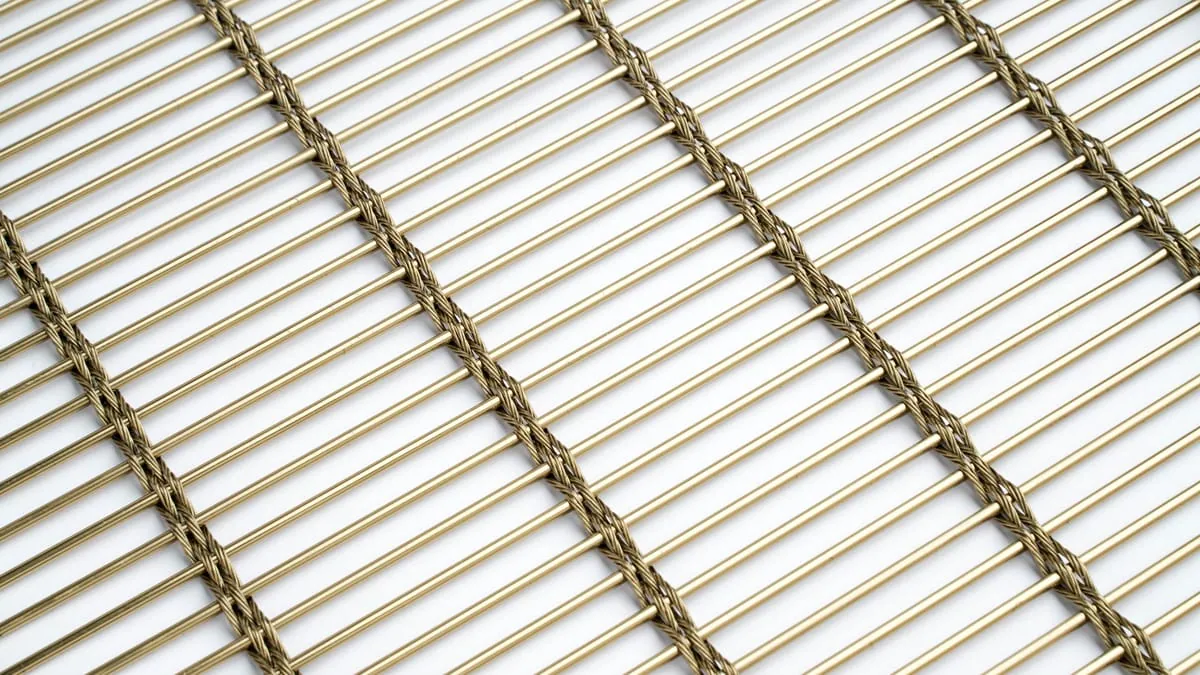

SG-CR-015
- Open area
- 64.3%

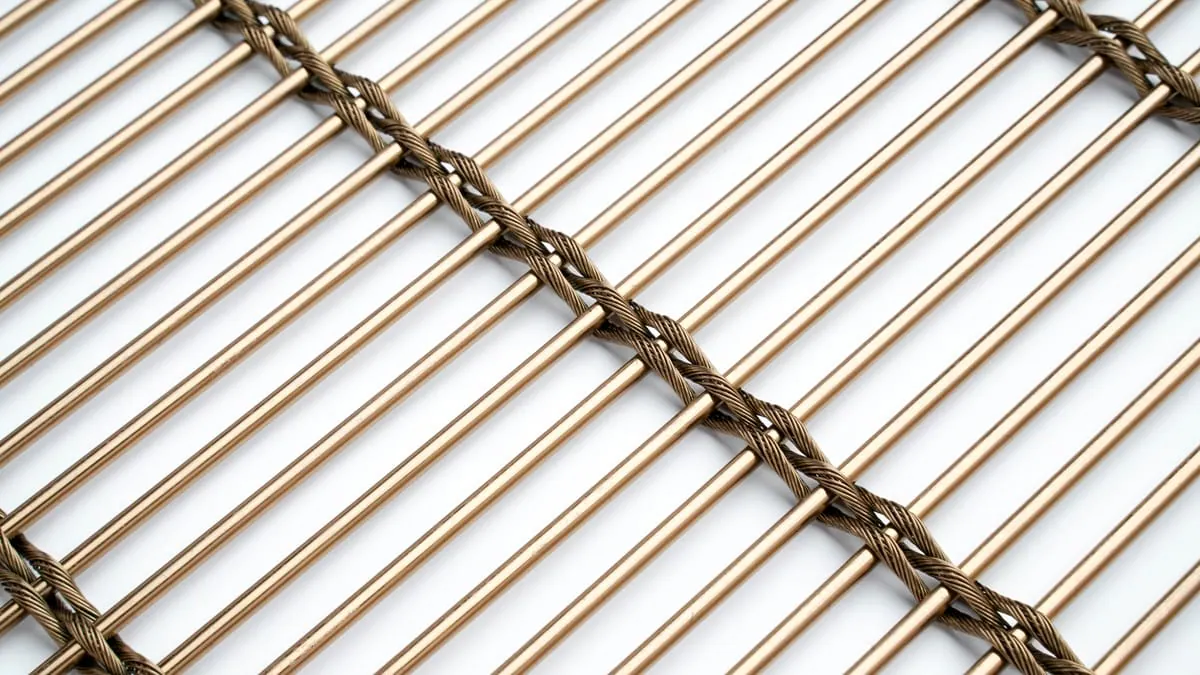

SG-CR-016
- Open area
- 64.3%
No matching SG-CR model. Adjust the filters or search by another model code.
Confirm width, height, intermediate support and load direction before the model is locked.
Use pitch, spacing and open area to balance visibility, airflow, shading and safety.
Review frames, clamping, turnbuckles or hidden fixing with the project drawing.
Check metal grade and finish under the expected daylight and viewing distance.
Materials & finishes
Confirm base metal and finish after the model shortlist is clear.
The model list is only the first selection layer. Material grade, surface tone, coating and sample review should be checked together before quotation or production.
Materials
Compare stainless steel, aluminum, brass, copper and carbon steel before confirming the mesh specification.
- Stainless steel
- Aluminum
- Brass / bronze
- Copper
- Carbon steel
Check natural metal, anodising, coating, brushed finish, plating and custom finishes with physical samples.
- Natural metal
- Brushed finish
- Powder coating
- Fluorocarbon coating
- Electroplating
- Aged bronze
- Custom finishes
Tensioned perimeter detail
Edge bars, perimeter frames and tension points can be checked around span, opening layout and site fixing conditions.

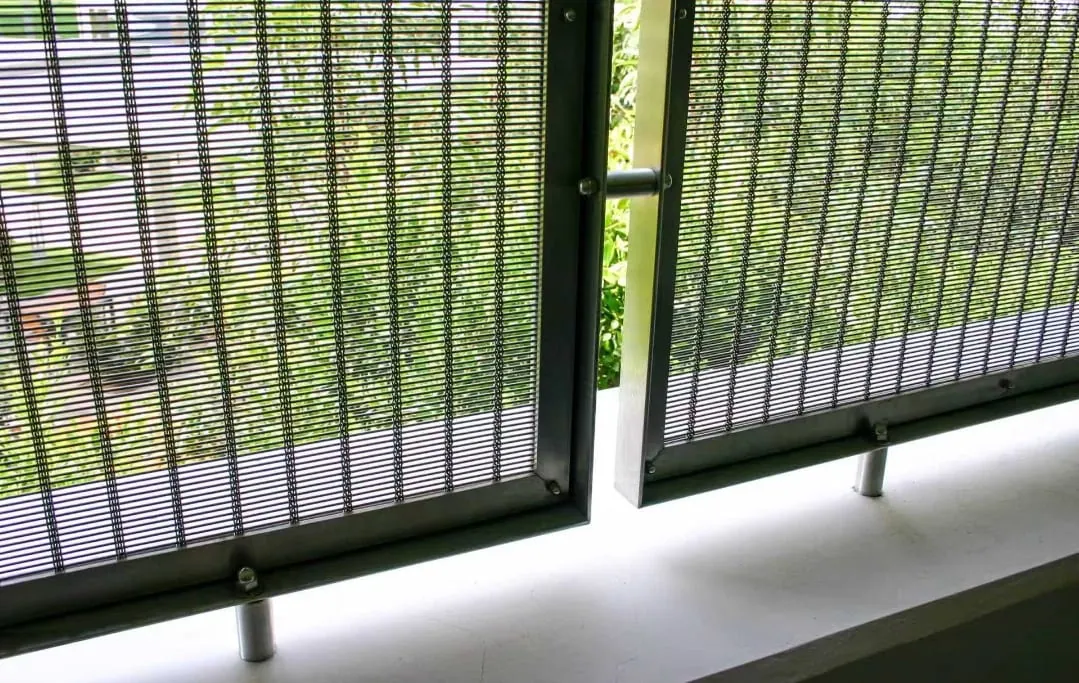

Facade frame coordination
Panel modules can be aligned with facade rhythm, substructure and repeated fixing points before production.
Downloads
Product resources for samples and technical decisions.
Start with the product catalogue, then use selection and fixing notes as the project details become clearer.
Catalogue Cable Rod Wire Mesh catalogue Use the product catalogue to compare surface effect, applications and the first samples worth checking.
View resource
Selection Product selection guide Compare application, openness, finish and fixing details before confirming samples.
View resource
Technical Fixing and technical support Prepare panel size, edge detail, frame, tension or track questions before quotation.
View resourceApplication mapping
Where this product is commonly used in real projects.

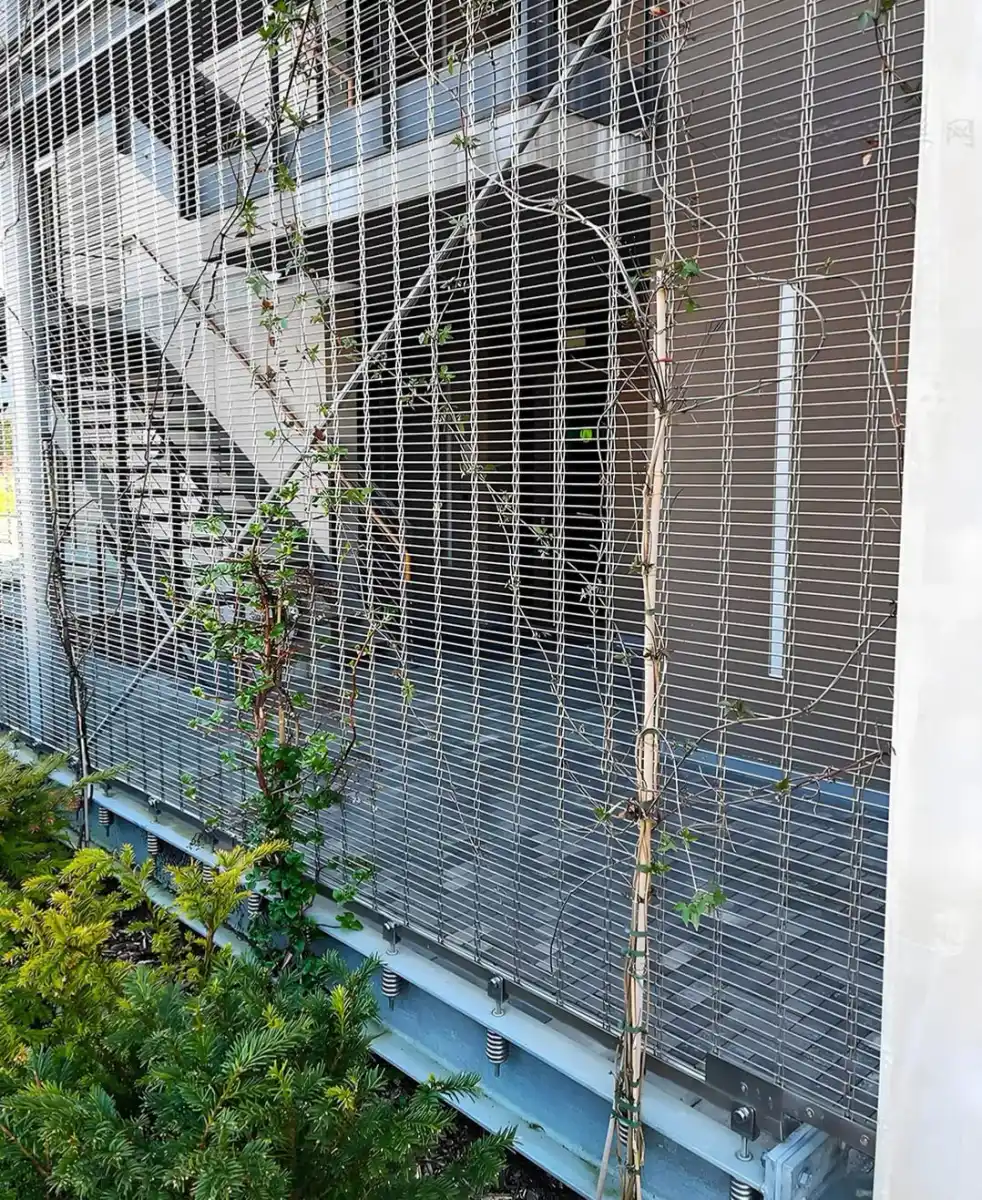

Exterior Facade / Envelope Depth, screening, daylight control and durable rhythm for commercial and public building skins.

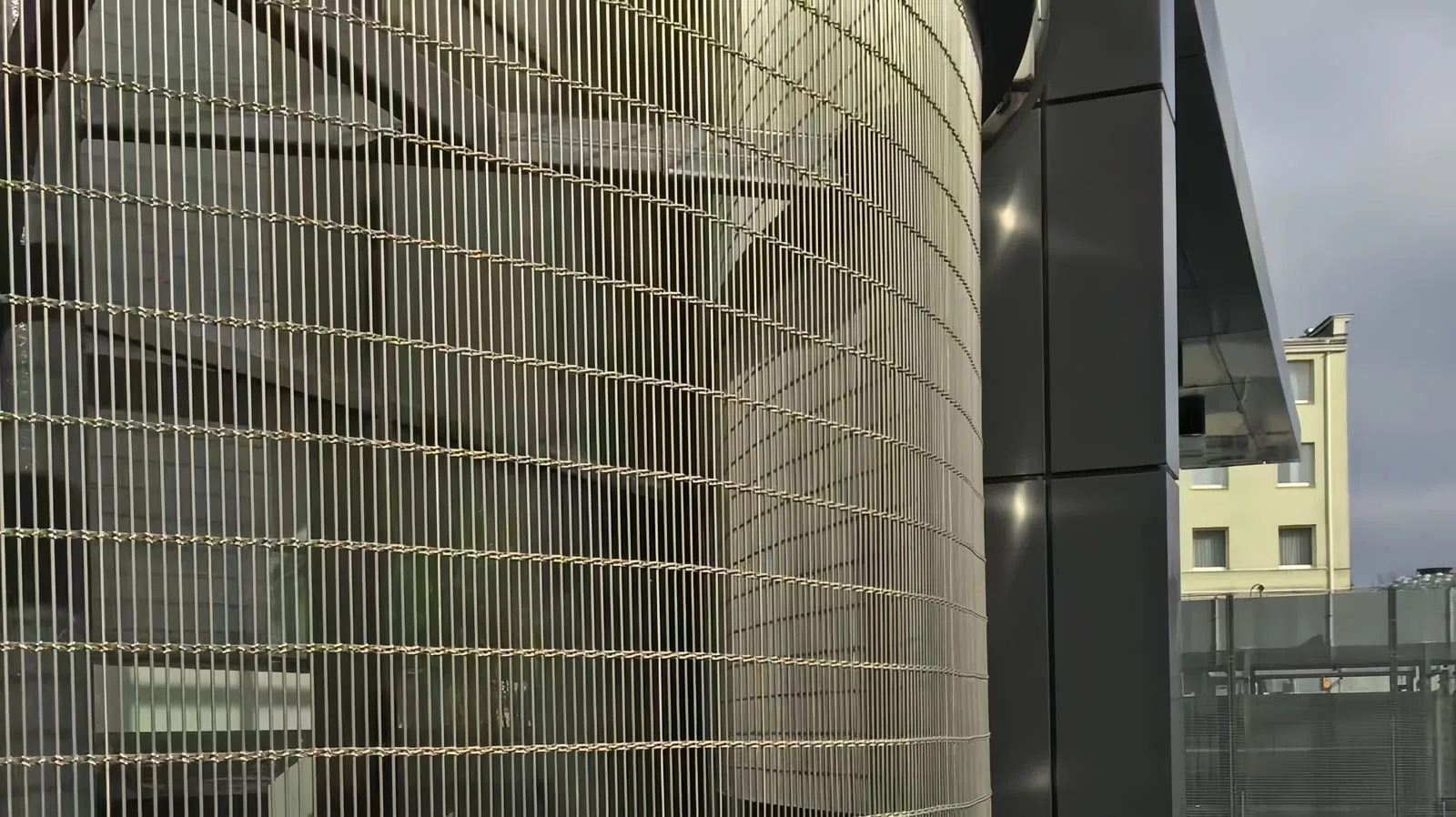

Performance Sunshading Solar control for commercial facades, hotel balconies and office windows with controlled visibility.

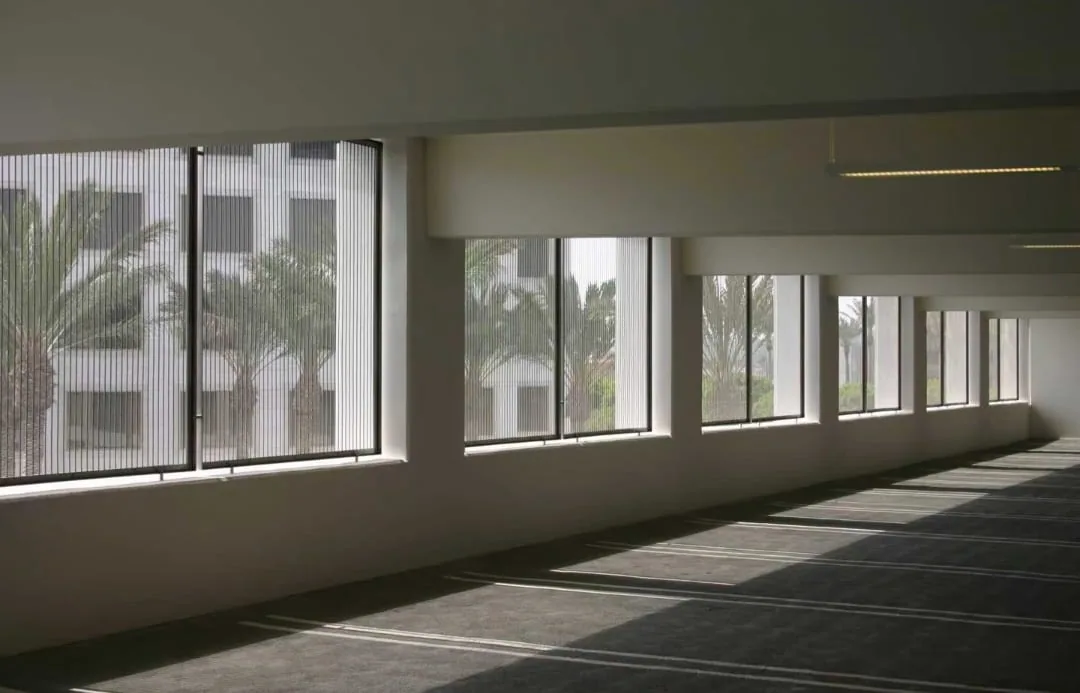

Ventilation Parking Garage Screen Breathable exterior screening for parking structures, service areas and open-air enclosures.
When is cable rod wire mesh a better choice than woven wire mesh?
Cable rod mesh is useful when the project needs a stronger linear rhythm, larger panel presence, clearer tension logic or facade-scale screening. Woven mesh is often better for finer close-range texture.
What should be checked before selecting an SG-CR model?
Check open area, cable and rod pitch, panel span, edge support, tension or frame route, exposure condition and sample appearance under the expected viewing distance.
Can cable rod wire mesh be used on exterior facades?
Yes, when material grade, fixing support, panel size, wind exposure and edge detail are reviewed together. SGORIA should see drawings or elevation dimensions before confirming the route.
What information helps SGORIA quote cable rod mesh accurately?
Provide the model preference, panel width and height, quantity, application, finish target, fixing idea and any facade or frame drawings. These details affect both production and installation logic.
Compare nearby families
Similar products worth comparing before you request samples.
When the visual effect is close, SGORIA can compare openness, texture, weight, finish and fixing details before recommending samples.
Next step
Share your project, and SGORIA will help shape the right mesh choice.
Send your application, drawing or reference image. SGORIA can help compare mesh type, finish, openness and sample options.
